The location of the RMB and the number of circuit cards present
depends on the type of motherboard that is installed. An Avaya S3400-family
server uses the following configurations:
Note: For example purposes, this figure shows how to replace an RMB.

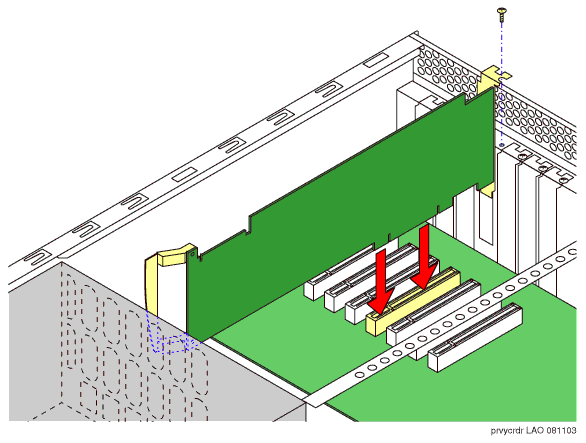

Nonintegrated video and LAN model

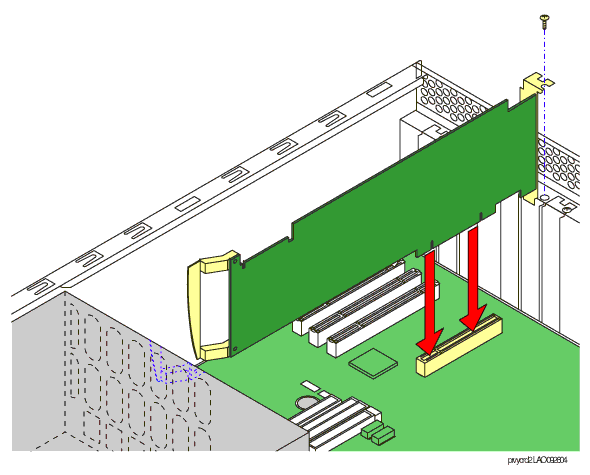

Integrated video and LAN model
