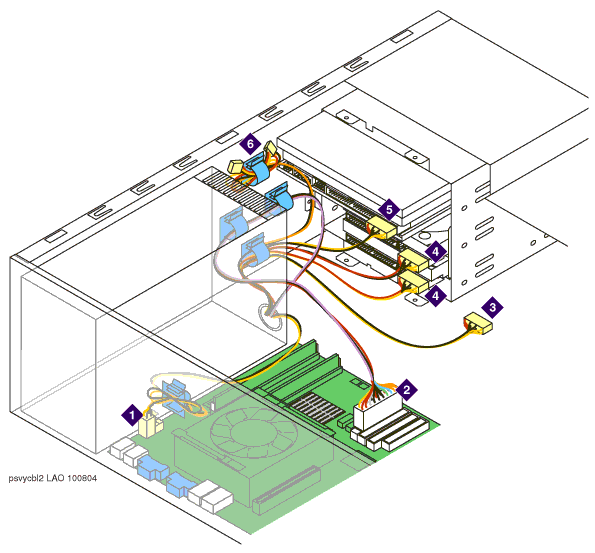

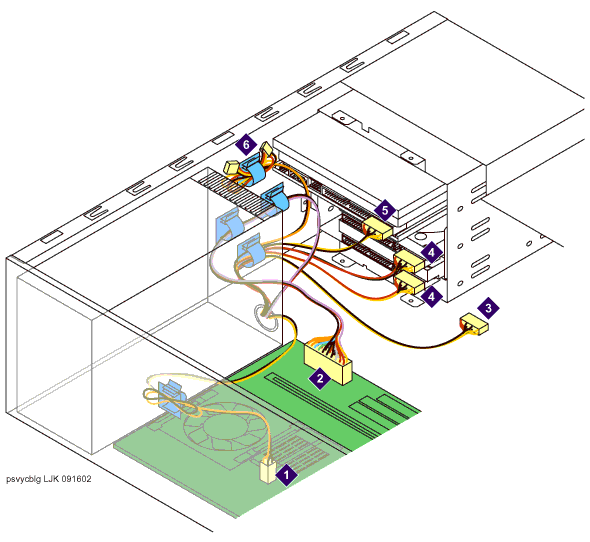

The power supply connections to the motherboard vary, depending
on the type of motherboard that is installed:
|
1
|
4-pin connection to the +12 V CPU Power
connector on the motherboard (use the 4 pins closest to the
back panel) |
|
2
|
Main power connector to the motherboard (4 pins
on the end of the motherboard power connector are not used)
|
|
3
|
4-pin power connector leading to the fan assembly |
|
4
|
4-pin power connector to the disk drives (the
MAS has only one hard drive) |
|
5
|
4-pin power connector to the DVD drive |
|
6
|
Dress clip for any unused power connectors |
