Removing or replacing the front bezel

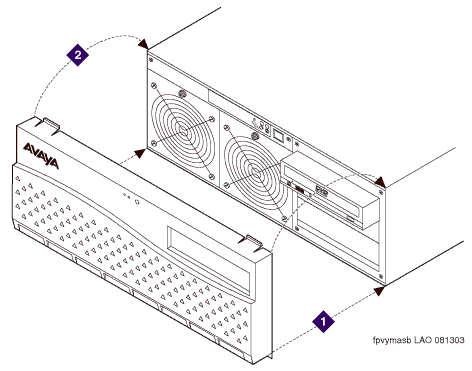

Removing the front bezel

2	Press the tabs on the top of the front bezel to release it.
1	Tilt the bezel forward, and then lift the bezel out.

1	Insert the tabs on the bottom of the front bezel into the chassis.
2	Push the bezel upright until the two upper tabs snap into place under the front cover.
