Removing or replacing the cover

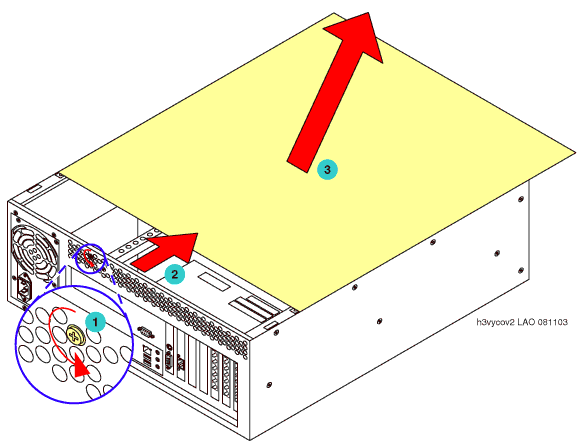

Removing the top cover

1	Loosen the screw latch for the top cover.
2	Slide the cover towards the front of the server to release it.
3	Lift the cover off the chassis.

3	Place the top cover on the chassis so it overhangs the front of the server.
2	Align the tabs under the cover with the rail slots, and then push the cover back.
1	Tighten the screw latch on the back of the server.
