Replacing the LED panel (MAS or MSS-S)

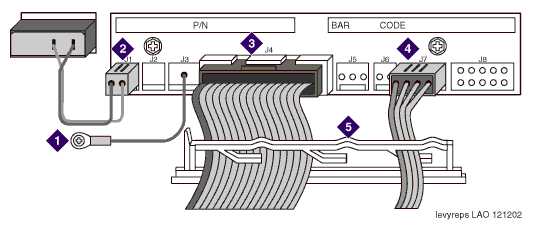

1	Ground connection
2	J1 cable to power switch
3	J4 cable to the motherboard
4	J7 RMB interface cable (MSS only)
5	Cable tie-down strap
