Bring the System Online

Connect Directly to the Avaya Media Gateway

Return to Task List

You can connect directly from the PC if it is 50 ft (15 m) or less from the Avaya Media Gateway.

Connect the equipment as shown in A typical direct connection. Also see PC connections by platform.


Caution! For a DC-powered system, install an EIA 116A Isolator in series between the cable and the TERM, DOT, or Terminal Active connector.

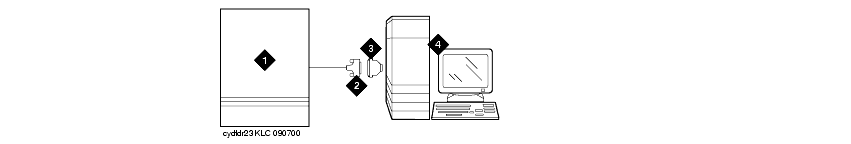

A typical direct connection

Figure Notes:

PC connections by platform
Reliability
r
si
csi

Standard

Terminal Active

TERM

TERM

High/Critical

--

DOT

--

Return to Task List
