Connect Remotely to the Avaya Media Gateway Through a Data Module

Made Easy Tool for DEFINITY Media Server Configurations
Issue 5, October 2002

Bring the System Online

Connect Remotely to the Avaya Media Gateway Through a Data Module

Return to Task List

If the PC is more than 50 ft (15 m) from the Avaya Media Gateway, you can connect it through a data module.

Connect the equipment as shown in A typical remote connection using an 8400B (top) or 7400B (bottom) data module.

Note:

With a 7400A or 7400B+ data module, use a 4-wire digital line circuit pack. With the 8400B+ data module, use a 2-wire digital line circuit pack.

In place of a 7400B+ data module, you can use a 7400A data module. If you do, see Set the Data Module to DCE Mode.

Wire the digital line circuit pack to the wall jack as follows:

For a 7400B+, wire to the second and third pair of the wall jack.

For an 8400B+, wire to the first pair of the wall jack.

After connecting the data module, check the Set the Data Module to DCE Mode and perform any necessary tasks.

Return to Task List

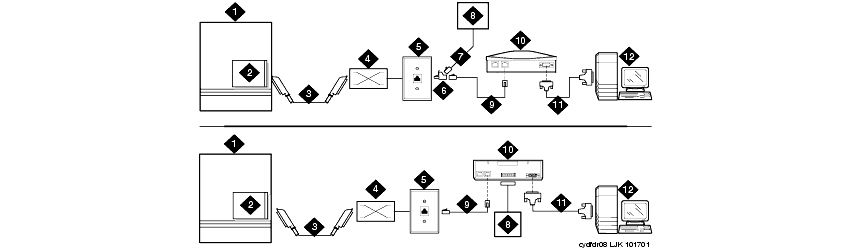

A typical remote connection using an 8400B (top) or 7400B (bottom) data module

Figure Notes:

Avaya Media Gateway

Digital line circuit pack

B25A 25-pair cable

Main distribution frame (MDF)

103A or Avaya modular wall jack

400B2 adapter

D6AP power cord (8400B+ only)

Data module power supply

7-ft (2-m) D8W modular cord

Data module (8400B+ [top] or 7400B+ [bottom])

50-ft (15-m) M25A cable (RS-232)

Computer with Avaya Site Administration
