Install Fiber Optic Cable Pass-Thru Kit for MCC1 (Multicarrier) Cabinets

Duplicated DS1C Converter Complex Administration for TN574 Circuit Packs

Return to Task List

Fiber Link Administration form for TN574 Circuit Pack (Duplicated DS1 Converter Complex Administration) (page 3 of 3) allows you to admininster the DS1 converter.

Page 3 appears when the Is one endpoint remoted via a DS1 Converter Complex? field is yes and duplication is enabled.


Note: When you administer DS1 Converter TN1654 circuit packs, different fields display.

For field definitions of the fields displayed on page 3 of the Fiber Link Administration form, see DS1C Converter Complex Administration for TN574 Circuit Packs.

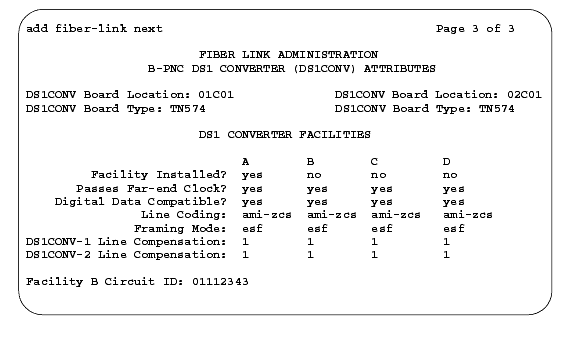

Fiber Link Administration form for TN574 Circuit Pack (Duplicated DS1 Converter Complex Administration) (page 3 of 3)

Return to Task List
