DS1 Converter Complex Administration for T1 TN1654 Circuit Packs

Made Easy Tool for DEFINITY Media Server Configurations
Issue 5, October 2002

Install Fiber Optic Cable Pass-Thru Kit for MCC1 (Multicarrier) Cabinets

The following unique fields display when administering a T1 TN1654 DS1 Converter.

Bit Rate -- Displays when the DS1 Converter circuit pack is TN1654. Enter either 1.544 for domestic T1 operation or 2.048 for international E1 operation.

Facility Startup Idle Code -- Displays when the DS1 Converter circuit pack is TN1654. Enter 8 digits, each digit must be 0 or 1. The second digit must be 1. Default is 11101000. You can administer this field on a per circuit pack basis. This is the idle code used when a TN1654 first establishes a link on a T1/E1 facility. The initial idle code used by the TN1654 is overwritten by the center stage switch to an "all ones" pattern once framing is established on that T1/E1 facility.

Framing Mode -- For TN1654 with 1.544 Mbps Bit Rate, this is a display-only field.

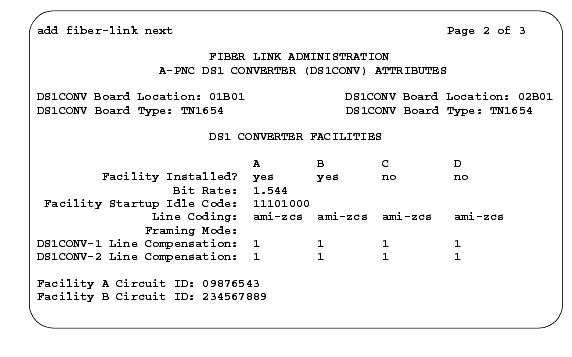

Fiber Link Administration form for T1 TN1654 Circuit Pack (DS1 Converter Complex Administration) (page 2 of 3)

Send comments to MadeEasy Development Team
