Made Easy Tool for DEFINITY Media Server Configurations
Issue 5, October 2002
Install and Connect MCC1 (Multicarrier) Cabinet
Connect Critical Reliability CSS-Connected System with 1 Switch Node

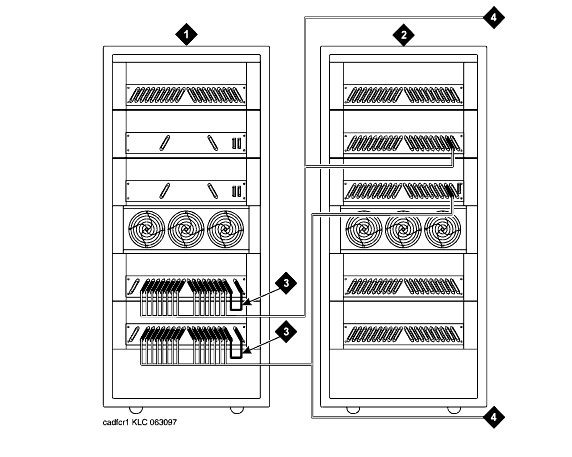

Critical-Reliability CSS-Connected with 1 Switch Node shows typical fiber optic cabling between cabinets. The cable between port slots 1 and 2 on each switch node is a metallic cable (H600-278).
Connect the 2 groups of 1 to 15 cables between the PPN and each EPN in an alternating port slot order: 20, 3; 19, 4; 18, 5; and so forth.
Critical-Reliability CSS-Connected with 1 Switch Node
|
|
|
|
|
|
|
|
|
|
