Made Easy Tool for DEFINITY Media Server Configurations
Issue 5, October 2002



Install and Connect SCC1 (Single-Carrier Cabinets)

Connect DC Power Cabinet Ground

Return to Task List

  1. At the DC Power Cabinet, connect a 1 AWG (#70) (7 mm 2) ground wire to the GROUND DISCHARGE bar. See DC Power Cabinet Grounding.

  2. Route the ground wire out of the cabinet and terminate it on the approved ground.


Caution! The approved ground must be connected using the correct gauge wire, terminated with a listed clamp, and identified with a grounding tag (FORM 15657NR, or equivalent).

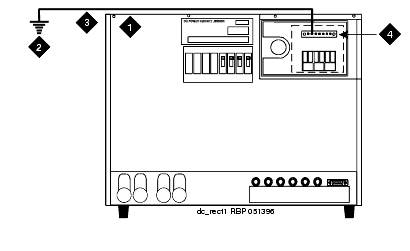

DC Power Cabinet Grounding

Figure Notes:

Return to Task List
