Install and Connect SCC1 (Single-Carrier Cabinets)

Connect Battery Cabinet

Return to Task List


Caution! Power is present in the cabinet even if the AC power cable is unplugged. Turn off the main circuit breaker on the front of the cabinet when procedures require ALL power to be removed from the cabinet.

Connect the DC Battery Cabinet to the DC Power Cabinet.

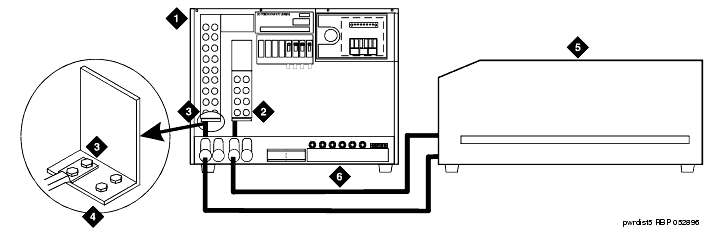

DC Battery to DC Power Cabinet Connections shows how to make typical connections from the DC Battery Cabinet to the DC Power Cabinet.

DC Battery to DC Power Cabinet Connections

Figure Notes:

Return to Task List
