Install and Connect SCC1 (Single-Carrier Cabinets)

---

Connect Optional Battery Leads

Return to Task List

To prevent the internal batteries from discharging, the Control Cabinet is shipped with the battery leads disconnected.

1. Set the circuit breakers OFF. See Control Cabinet Battery Location -- Right Side.


2. Connect the battery leads. The battery is near the top of the carrier toward the front-right. The battery leads are located next to the battery and are accessible from the front of the cabinet.

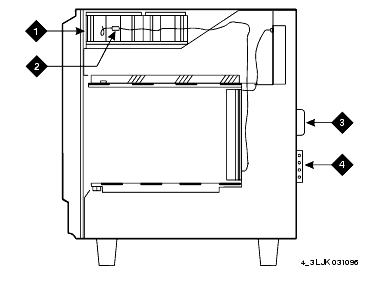

Control Cabinet Battery Location -- Right Side

Figure Notes:

1. Battery


2. Battery Lead Connector


3. Circuit Breakers (Located Between plates)


4. Cabinet Single-Point Ground Block

Return to Task List

---
