Made Easy Tool for DEFINITY Media Server Configurations
Issue 5, October 2002
Install and Connect SCC1 (Single-Carrier Cabinets)
Install Cabinet Clips (Systems without Earthquake Protection)
A cabinet clip is required between each pair of stacked cabinets.
At the front of the cabinets, install a cabinet clip between each pair of cabinets by hooking the clip into the slot of the upper cabinet and snapping the straight leg of the clip into the slot on the lower cabinet. See Location of Cabinet Clips.

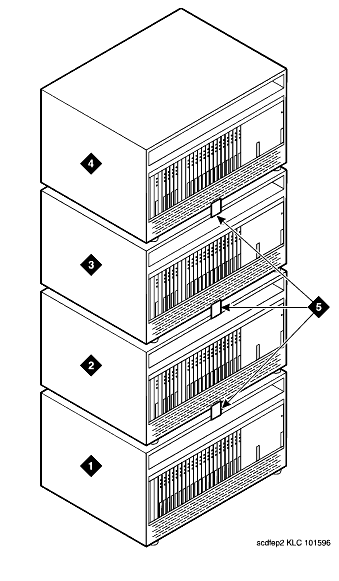

Location of Cabinet Clips
Figure Notes:
|
|
|
|
|
|
|
|
|
|
