Made Easy Tool for DEFINITY Media Server Configurations
Issue 4, May 2002



G3V4vs/R5vs/R6vs to Avaya MultiVantage

Install TDM/LAN bus terminators [G3V4vs, R5vs, R6vs to Avaya MultiVantage si]

Return to Task List

  1. Install the 2 AHF110 TDM/LAN bus terminators in slots 02 and 20 of the cabinet (see Location of TDM/LAN bus terminators).

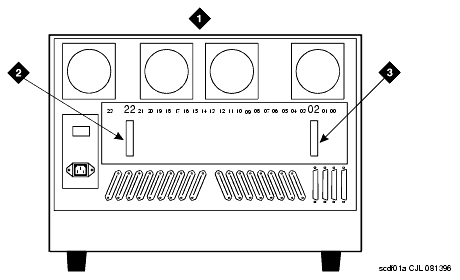

Location of TDM/LAN bus terminators

Figure Notes:
      1. Rear of control cabinet

      2. TDM/LAN bus terminator in slot 22

      3. TDM/LAN bus terminator in slot 02

Return to Task List
