Web Agent Procedure

To add or delete interfaces to a zone filter using the Web Agent:

1. In the navigation pane, expand the Routing > AppleTalk > Configuration folders, and then click Zone Filter.

The AppleTalk Zone Filter Web page is displayed in the content pane. See Figure�19-16.

2. Select Edit If. The Add/Delete Interface to Zone Filter Web page is displayed. See Figure�19-18.

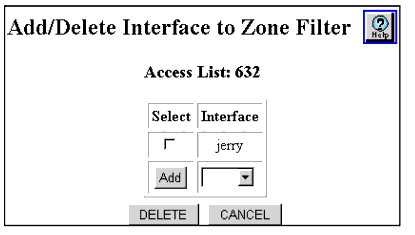

Figure 19-18. Add/Delete Interface to Zone Filter Web Page

3. Select the interface to be added from the Add field pull-down menu.

Or

Click the checkbox in the Select column for the interface that you want to be remove.

4. Click:
• Add to add this zone filter to the selected interface.
• DELETE to remove this zone filter from the selected interface.
• CANCEL to restore previous settings.
