Displaying DVMRP Neighbor Routers

Web Agent Procedure

To view the DVMRP neighbor routers using the Web Agent:

  1. In the navigation pane, expand the Routing > DVMRP folders, and then click Interface Statistics.

    2. The DVMRP Interface Statistics Web page is displayed in the content pane. See Figure�120.

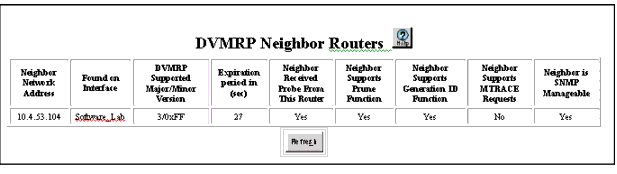

Figure�121:�DVMRP Neighbor Routes Web Page


  1. Select the number in the Neighbor DVMRP Router(s) column, if it is 1 or more. The DVMRP neighbor routers Web page is displayed.
  2. See Table�82 for an explanation of the DVMRP Neighbor Router parameters.

Table�82:�DVMRP Neighbor Router Parameters �
Parameter
Description
Neighbor Network Address
The neighbor router's IP address.
Found on Interface
The neighbor routers found on this interface.
DVMRP Supported Major/Minor Version
The DVMRP version supported by the neighbor router.
Expiration period in (sec)
The time (in seconds) before the neighbor router times out.
Neighbor Received Probe From This Router
Whether the neighbor router received this router's probe message.
Neighbor Supports Prune Function
Whether the neighbor router supports prune functionality.
Neighbor Supports Generation ID Function
Whether the neighbor router supports generation of IDs.
Neighbor Supports MTRACE Requests
Whether the neighbor router supports MTRACE requests.
Neighbor is SNMP Manageable
Whether the neighbor router can be managed by SNMP.
�
