Displaying the DVMRP Designated Forwarder(s) Table

Web Agent Procedure

To view the DVMRP Designated Forwarder table:

  1. In the navigation pane, expand the Routing > DVMRP folders, and then click Route Table.

    2. The DVMRP Route Table Web page is displayed in the content pane. See Figure�123.

  2. Select the number from the Designated Forwarder column for the appropriate source network. The Designated Forwarder(s) Table Web page is displayed. See Figure�124.

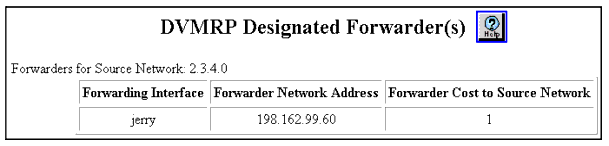

Figure�124:�Designated Forwarder(s) Table Web Page


  1. See Table�86 for an explanation of the DVMRP Designated Forwarder(s) parameters:

Table�86:�DVMRP Designated Forwarder(s) Table Parameters
Parameter
Description
Forwarding Interface
Local interface which leads to the network where the Designated Forwarder resides.
Forwarder Network Address
Designated Forwarder for the given source network on the indicated Forwarding Interface.
Forwarder Cost to Source Network
Cost reported by the Designated Forwarder for the given source network.
