Web Agent Procedure

To edit an AppleTalk NBP filter using the Web Agent:

1. Select NBP Filter from the Routing > AppleTalk > Configuration group on the Web Agent window. The AppleTalk NBP Filter dialog box opens (Figure 19-15).

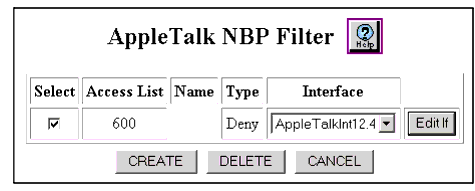

Figure 19-15. AppleTalk NBP Filter

2. See Table 19-3 to edit the AppleTalk NBP Filter dialog box parameters.
3. Click:
• CREATE to add a new filter. The Add AppleTalk NBP Filter dialog box opens. See “Creating an AppleTalk Name-Binding Protocol (NBP) Filter” earlier in this chapter for more information.
• DELETE to remove the selected NBP filter.
• CANCEL to restore previous settings.
• Edit If to add or delete this NBP filter to/from an interface. The Add/Delete Interface to NBP Filter dialog box opens. See “Adding or Deleting Interfaces to an NBP Filter” later in this chapter for more information.
