Web Agent Procedure

To add or delete interfaces to an NBP filter using the Web Agent:

1. Select NBP Filter from the Routing > AppleTalk > Configuration group on the Web Agent window. The AppleTalk NBP Filter dialog box opens (see Figure 19-15).
2. Select Edit If. The Add/Delete Interface to NBP Filter dialog box opens (see Figure 19-16).

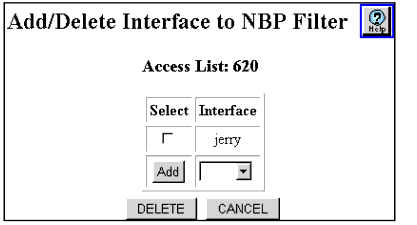

Figure 19-16. Add/Delete Interface to NBP Filter Dialog Box

3. Select the interface to be added from the Add field pull-down menu.

Or

Click an interface from the Select column for the interface that you want to be remove.

4. Click:
• Add to add this NBP filter to the selected interface.
• DELETE to remove this NBP filter from the selected interface.
• CANCEL to restore previous settings.
