Web Agent Procedure

To add or delete interfaces to a zone filter using the Web Agent:

1. Select Zone Filter from the Routing > AppleTalk > Configuration group on the Web Agent window. The AppleTalk Zone Filter dialog box opens (Figure 19-17).
2. Select Edit If. The Add/Delete Interface to Zone Filter dialog box opens (Figure 19-19).

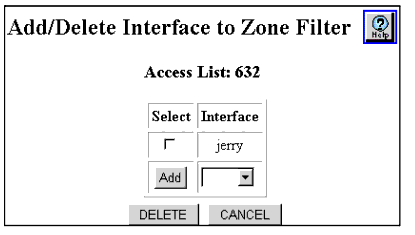

Figure 19-19. Add/Delete Interface to Zone Filter Dialog Box

3. Select the interface to be added from the Add field pull-down menu.

Or

Click the checkbox in the Select column for the interface that you want to be remove.

4. Click:
• Add to add this zone filter to the selected interface.
• DELETE to remove this zone filter from the selected interface.
• CANCEL to restore previous settings.
