Searching the IP Routing Table

To use the IP routing table:

1. Select Route Table Search from the Routing > IP > Display group on the Web Agent window. The IP Route Table Search dialog box opens (Figure 12-21).

Figure 12-21. IP Route Table Search Dialog Box

2. Select the search criteria you want to use to find more specific information on available routes. For example, if you want to find all static routes that are presently configured on your switch, search by source and specify static as your search value.
3. See Table 12-12 to determine your search parameters:

   Table 12-12. IP Route Table Search Parameters

   Parameter	Allows you to search...
   Source	Your IP routing table using one of the following parameters: RIP OSPF Static Local Once you select one of these parameters, the search attempts to find routes associated with that parameter.
   Interface	The interface you selected. System default entries include: Default Discard Ethernet Console Configured Interface
   IP Address	The IP address you entered.

4. Select SEARCH. If routes are available, they are displayed in the IP Routing Table dialog box (Figure 12-22).

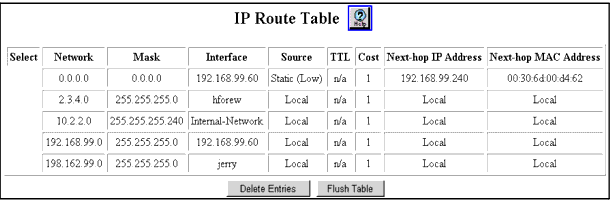

Figure 12-22. IP Route Table Dialog Box

NOTE: To delete a local entry from your IP routing table, you must delete the local IP interface associated with that entry.
