Displaying the IP Routing Table Statistics

To display the IP Routing Table Statistics:

Select Route Table Statistics from the Routing > IP > Display group on the Web Agent window. The IP Routing Table Statistics dialog box opens (Figure 12-23)

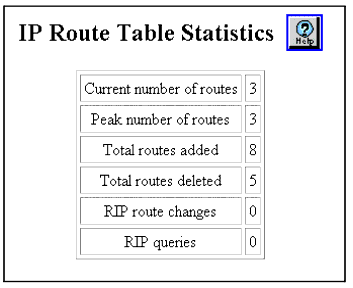

Figure 12-23. IP Route Table Statistics Dialog Box

See Table 12-13 for a definition of the IP Routing Table Statistics dialog box parameters:

Table 12-13. IP Routing Table Statistics Dialog Box Parameters
Parameter	Definition
Current Number of Routes	Displays the total number of active routes.
Peak Number of Routes	Displays the peak number of routes.
Total Routes Added	Displays the total number of routes added.
Total Routes Deleted	Displays the total number of routes deleted.
RIP Route Changes	Displays the number of changes to the IP route database made by RIP.
RIP Queries	Displays the number of RIP queries sent to the network.
