Displaying DVMRP Neighbor Routers

Web Agent Procedure

To view the DVMRP neighbor routers using the Web Agent:

1. Select Interface Statistics from the Routing > DVMRP group on the Web Agent window. The DVMRP Interface Statistics dialog box opens (Figure 12-30).

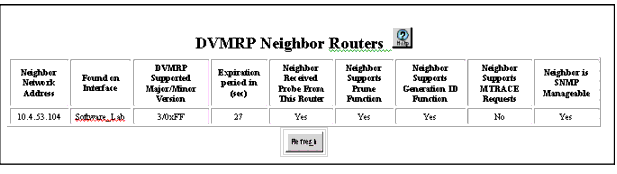

Figure 12-31. DVMRP Neighbor Routes Dialog Box

2. Select the number in the Neighbor DVMRP Router(s) column, if it is 1 or more. The DVMRP neighbor routers dialog box opens.
3. See Table 12-21 to view more information on DVMRP neighbor routers.

   Table 12-21. DVMRP Neighbor Routers

   Parameter	Displays...
   Neighbor Network Address	The neighbor router’s IP address.
   Found on Interface	The neighbor routers found on this interface.
   DVMRP Supported Major/Minor Version	The DVMRP version supported by the neighbor router.
   Expiration period in (sec)	The time (in seconds) before the neighbor router times out.
   Neighbor Received Probe From This Router	Whether the neighbor router received this router’s probe message.
   Neighbor Supports Prune Function	Whether the neighbor router supports prune functionality.
   Neighbor Supports Generation ID Function	Whether the neighbor router supports generation of IDs.
   Neighbor Supports MTRACE Requests	Whether the neighbor router supports MTRACE requests.
   Neighbor is SNMP Manageable	Whether the neighbor router can be managed by SNMP.
