Searching the IPX Route Table

To search the IPX route table:

1. Select Route Table Search from the Routing > IPX > Display Web Agent window. The IPX Route Table Search dialog box opens (see Figure 16-13).

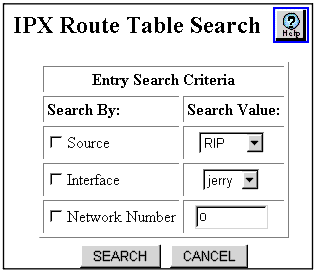

Figure 16-13. IPX Route Table Search Dialog Box

2. Select the SEARCH Criteria you want to use to find information on specific routes. For example, if you want to find all static routes that are presently configured on your switch, search by source and specify static as your search value.
3. See Table 16-7 to determine the search parameters:

   Table 16-7. IPX Route Table Search Parameters

   Parameter	Allows you to...
   Source	Search the IPX route table using of the following parameters: RIP - RIP routing updates Static - User configuration Local - Directly connected routes Once you select a parameter, you can search to find the routes associated with that parameter.
   Interface	Search the IPX Route table using the interface associated with the next-hop to the IPX network.
   Network Number	Search the IPX Route table using the IPX Network address (hexadecimal number) you specify.

4. Click on the Search button to start:
• If the available routes are found they are displayed in the IPX Route Table dialog box.
• If no routes are available, a message is displayed in the IPX Route Table dialog box.
