Web Agent Procedure

To delete a multicast session client port by using the Web Agent:

1. Select Session Search from the L2 > Intelligent Multicast group on the Web Agent window. The Intelligent Multicast Session Search dialog box opens (Figure 20-4).
2. Select SEARCH to begin the search for the multicast session. The Multicast sessions Dialog Box opens with the search results. (Figure 20-5)
3. Select the client port number from the Client Ports column. The Multicast Session Client Port dialog box opens.(Figure 20-6).

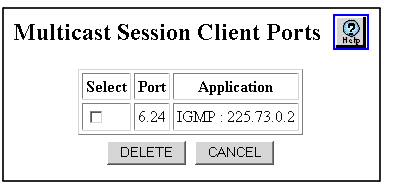

Figure 20-6. Multicast Sessions Client Port

4. See Table 20-5 for an explanation of the Multicast Session Client Port dialog box parameters:

   Table 20-5. Multicast Session Client Port Dialog Box Parameters

   Parameter	Definition
   Select	Select the multicast session client port.
   Port	Displays the client port number.
   Application	Displays the application(s) associated with this client port. The applications are: Mgmt IGMP LGMP CGMP

5. Click DELETE to remove your selected multicast session client port, or CANCEL to restore previous settings.

NOTE: Static (Mgmt) client ports can only be removed through the Static Sessions dialog box.
