Web Agent Procedure

To create a static client port using the Web Agent:

1. Select Static Sessions from L2 > Intelligent Multicast group on the Web Agent window. The Static Multicast Sessions dialog box opens (Figure 20-9).
2. Select the number from the Static Client Ports column. The Static Multicast Sessions Client Ports dialog box opens (Figure 20-10).

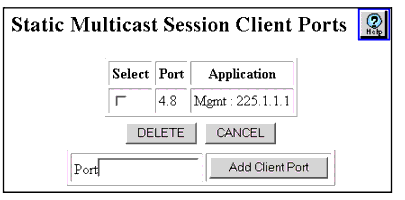

Figure 20-10. Static Multicast Sessions Clients Port Dialog Box

3. Enter the new port number to be added in the Port field,.
4. Click Add Client Port. The new port is added.
