After mounting the G600 Media Gateways in the rack, you must connect the TDM/LAN cables between them. You must also connect CAT5 cables to the appropriate slots on the back of the media gateways.
NOTE: TDM/LAN bus terminators are factory installed on a single Avaya G600 Media Gateway. See Media gateway A TDM/LAN bus terminators

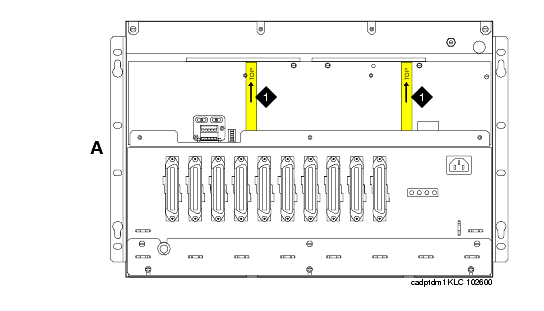

Media gateway A TDM/LAN bus terminators
|
|
|
