Installing the Avaya G700 Media Gateway��

Installing the Avaya G700 Media Gateway��

An Avaya G700 Media Gateway or an Avaya G700 Media Gateway with an S8300 Media Server configured as a Local Spare Processor (LSP) may be added to either a S8700 Multi-Connect or IP Connect configuration. To add a G700 Media Gateway, you must have a TN799DP C-LAN circuit pack installed in the MCC1, SCC1, or G600 Media Gateway. The G700 is an endpoint on the C-LAN circuit pack. A sample configuration is shown in Sample configuration showing an Avaya MCC1 Media Gateway with an Avaya G700 Media Gateway.

The general process for adding an Avaya G700 Media Gateway to an existing Avaya MCC1, SCC1, or G600 Media Gateway follows:

Install the MCC1, SCC1, or G600 Media Gateway
Install and configure the G700 Media Gateway.
Add the media gateway to the S8700 translations
Install a TN799DP (V5 or higher) C-LAN circuit pack
Administer the C-LAN circuit pack by

Adding the node names and IP addresses for each G700 Media Gateway being added on the IP Node Names screen
Filling in the required fields on the IP Interfaces screen
Enabling the Ethernet port.

Refer to Administer the TN799DP for more information on administering a TN799DP C-LAN circuit pack.

For complete information on how to install and configure an Avaya G700 Media Gateway, refer to Installation and Upgrades for the Avaya G700 Media Gateway controlled by an Avaya S8300 Media Server or an Avaya S8700 Media Server (555-234-100).

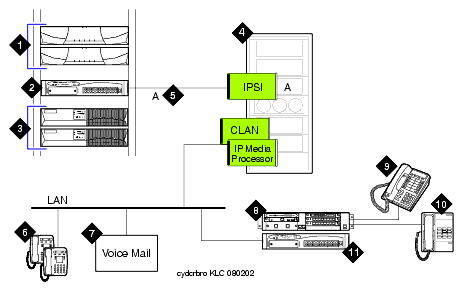

Sample configuration showing an Avaya MCC1 Media Gateway with an Avaya G700 Media Gateway��

Figure notes
1 S8700 Media Servers 2 Ethernet switch 3 UPS units: one for each media server. 4 MCC1 Media Gateway 5 Dedicated LAN connectivity to IPSI circuit pack in the MCC1 Media Gateway 6 IP telephones off the customer's network 7 Voice mail: connected via IP	8 G700 Media Gateway connected via the LAN to the TN799DP C-LAN board located in the MCC1 Media Gateway 9 DCP phones: Avaya multifunction digital telephones 10 Analog connectivity: analog telephones, lines, and trunks. 11 Ethernet switch (optional)
