Set the Carrier Address ID��

Set the Carrier Address ID either before or after installing each media gateway.

1. Loosen the thumb screws on the fan assembly and pull it straight out as shown in Fan assembly removal. Leave the fan assembly off until the unit is completely installed in the rack.
2. Verify and, if necessary, set the carrier address ID for each media gateway as shown in Setting media gateway carrier address ID. "A" settings are for the media gateway in the A location, "B" settings are for the media gateway in the B location, "C" settings are for the media gateway in the C location, and "D" settings are for the media gateway in the D location. "E" settings are not used in this configuration.

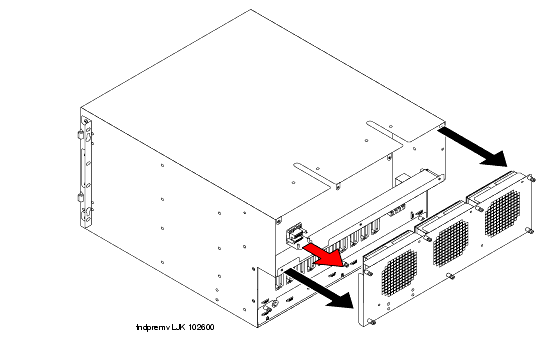

Fan assembly removal��

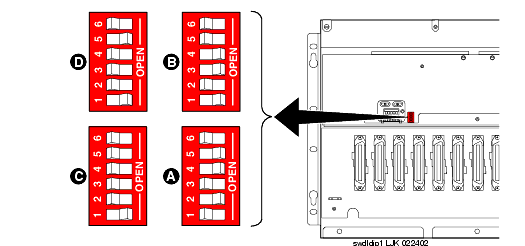

Setting media gateway carrier address ID
