Add Media Gateways

NOTE: Do this procedure only if the translations were not input earlier.

The following administration uses the services laptop computer connected to the active media server and uses Avaya Site Administration.

NOTE: A cabinet is defined as up to 4 G600 media gateways mounted in a rack and TDM-connected.

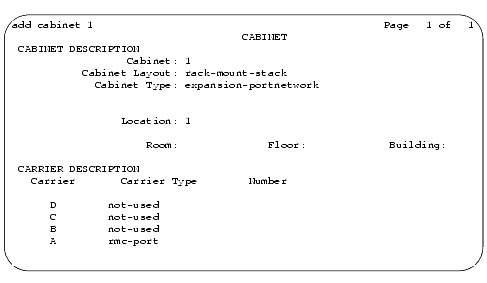

1. Type add cabinet number (1 through 64) and press Enter for each G600 media gateway stack controlled by one TN2312AP IPSI circuit pack.
2. Fill in the location and carrier type for media gateways 2, 3, and 4.��
