Administer and Enable the IP Media Server Interface��

NOTE: Do this procedure only if the translations were not input earlier.

The following administration uses the services laptop computer connected to the active media server and uses Avaya Site Administration.

NOTE: This procedure enables the IPSI circuit packs and allows them to control the port networks.

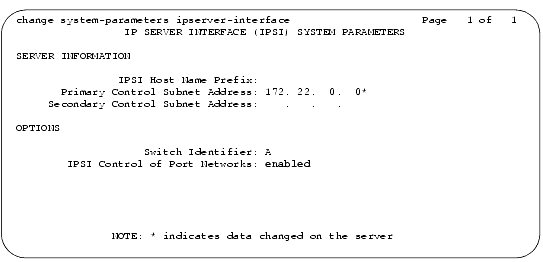

1. Type change system-parameters ipserver-interface and press Enter.��

2. Verify that the Primary Control Subnet Address is correct.

The subnet address must match the most significant 3 octets (the first 3 groups of digits in the subnet address) of the Server IP address filled in on the control network entry from the filled-out job aid entitled Pre-Installation Network Planning Forms--S8700 Media Server.

An Asterisk (*) to the right of the Subnet Address field means that although a subnet address is displayed, it is not the correct one; the Avaya MultiVantage call processing software does not have the subnet information. After verifying the displayed information, submit this form with or without changes to update the Avaya MultiVantage software with the correct subnet information.

CAUTION: If the information displayed in the Primary and/or Secondary Subnet Address fields is not correct it must be changed on the media servers. Use the Configure Server entry on the Web Interface application to change the media server configuration. Then return here to perform this step.

3. Set the Switch Identifier: field to the switch ID letter (A thru J; A is the default setting).
4. Set the IPSI Control of Port Networks: field to enabled.
5. Press Enter to effect the change.
