Adjunct Power Connection Locations���
Example Adjunct Power Connections shows typical connection locations for adjunct power. Adjunct power for station equipment may be supplied from the equipment room, satellite location, or the work location.
For this figure, the following example is used:
- If 25 telephones are connected to the media gateway and all 25 telephones need adjunct power, install a bulk power supply in the equipment room.
- If only ten of the telephones need adjunct power, install a bulk power supply at the satellite location.
- If only one telephone needs adjunct power, install the individual power supply at the work location.

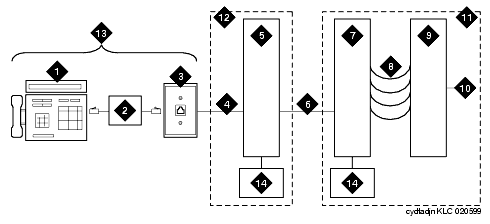

Example Adjunct Power Connections���
Figure notes
1 Typical Display Telephone
2 Individual Power Supply (Such as 1151A1 or 1151A2)
3 Information Outlet (Modular Jack)
4 4-Pair D-Inside Wire (DIW) Cable
5 Satellite Site or Adapter Location
6 25-Pair D-Inside Wire (DIW) Cable
7 Station Side of Main Distribution Frame (MDF)
|
8 100P6A Patch Cord or Jumpers
9 Media Gateway Side of Main Distribution Frame (MDF)
10 25-Pair Cable to Media Gateway (Analog Line Circuit Pack)
14 Bulk Power Supply (such as 1145B)
|
