IP Server Interface LEDs��

The TN2312AP IP Server Interface (IPSI) circuit pack LEDs are shown in TN2312AP circuit pack faceplate). It also has a programmable LED display to indicate whether its IP address is dynamic (shows media gateway location) or static (shows I�P). See LED display on the IPSI circuit pack--static address.

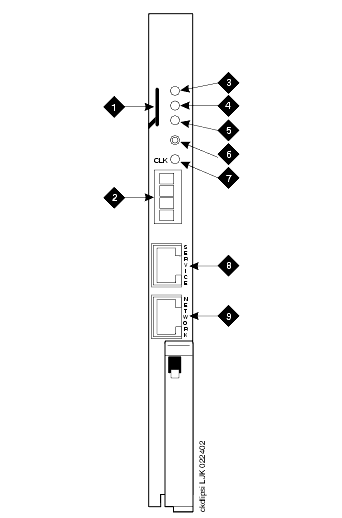

TN2312AP circuit pack faceplate��

Figure notes
Slot for ribbon cable (not used) LED display Red LED Green LED Amber LED	Recessed programming button Yellow LED (clock status) Services Ethernet port Network Ethernet port

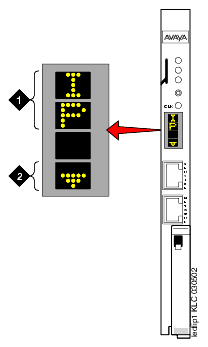

LED display on the IPSI circuit pack--static address��

Figure notes
IPSI has a static IP address	IPSI has connectivity and an IP address

The display also indicates connectivity (see LED display indicating connectivity status).

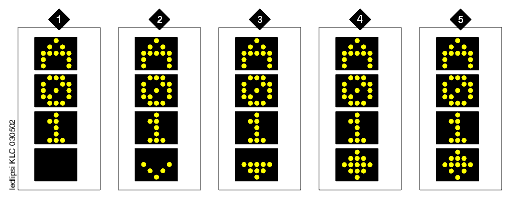

LED display indicating connectivity status

Figure notes
Connectivity Status	1	2	3	4	5
IPSI is connected to media server	no	yes	yes	yes	yes
IPSI has an IP address	no	no	yes	yes	no
Laptop computer is connected to IPSI services port	no	no	no	yes	yes
