Check Circuit Pack Configuration��

The list configuration report provides a list of circuit packs connected to the configuration and recognized by the software.

1. Type list configuration all and press Enter.
2. Verify the screen displays list configuration similar to Sample System Configuration Screen -- Page 4, S8700 Multi-Connect. Make sure the software is communicating with each circuit pack (except power supply circuit packs). Do not attempt to correct any problems until after the diagnostic tests that you run later in the configuration tests.
3. Note any boards with a VINTAGE column entry of NO BOARD or CONFLICT.
4. A u indicates unassigned ports, and a number indicates the port has been translated.

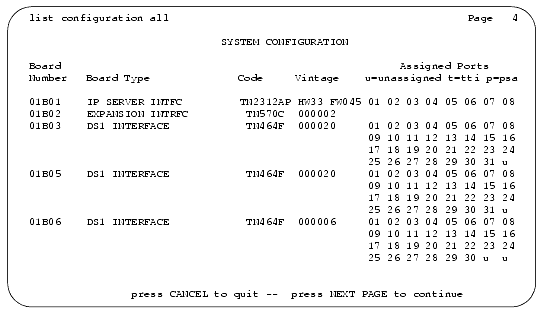

Sample System Configuration Screen -- Page 4, S8700 Multi-Connect���
