CAUTION: When adding or replacing any hardware, be sure to ground yourself against electrostatic discharge (ESD) by wearing a grounded wrist strap.
NOTE: The TN2302AP circuit packs are hot-swappable, so you do not need to power down the media gateway to install them.
NOTE: To properly seat the circuit pack, push firmly on the front of the faceplate until the latch reaches the bottom rail of the carrier. Then close the latch until it is fully engaged.
When you plug in the TN2302AP IP Media Processor, the circuit pack starts to boot. The RED LED stays on until an IP address is assigned to the circuit pack.

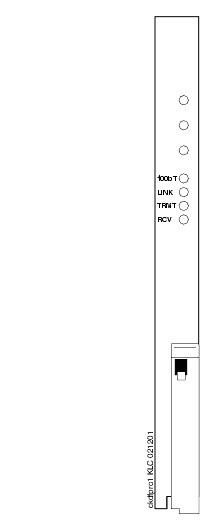

TN2302AP IP Interface faceplate
|
|
|
