Media Modules

The information in the Table 49 is necessary when ordering or replacing Avaya Media Modules.

Media Module Replacement

Reasons for replacing a Media Module include:

• Repairing a damaged Media Module
• Changing Media Module type

The modules on the G700 are not inserted until the G700 registers with Communication Manager. Likewise, all Media Modules and associated Maintenance Objects are removed if the G700 link goes down. The term 'board insertion process' refers to the process in which the Media Modules are queried as to their type, suffix, and vintage. Use the list config all or list config media-gateway <#> commands to access this information. Any Media Module that does not agree with administration generates a process error and is flagged to the relevant administration form. The removal of the Media Modules is detected. Listings of the G700 circuit packs show the relevant slot location as having 'no board.' The determination of T1/E1 modes of operation for the DS1 Media Modules is downloadable, since the DS1 Media Module can function as either a T1 or E1 interface.

Upon Media Module replacement, modules are registered with the G700 Media Gateway, where board type, suffix, and vintage are verified. The G700 then sends appropriate H.248 messages to the controller, thus creating Communication Manager objects.

For detailed descriptions of the Media Modules see "Hardware Guide for Avaya Communication Manager, 555-233-200."

WARNING: The G700 must not be operated with any slots open; empty slots should be covered with the supplied blank plates.

CAUTION: The connector pins can be bent or damaged if the module is handled roughly or if misaligned and then forced into position.

CAUTION: Separate ESD paths to the chassis ground connect to the Media Modules at the spring-loaded captive screws. Ensure the captive screws are securely tightened to prevent damage to the equipment.

Replacing Media Modules

Begin _____________________

1. Identify and mark all cables.
2. Undo the cables.
3. Undo the captive screws and slide out the old Media Module.
4. Position the Media Module squarely before the selected slot on the front of the G700 chassis and engage both sides of the module in the interior guides.
5. Slide the module slowly into the chassis, maintaining an even pressure to assure that the module does not become twisted or disengage from the guides. (Figure 5)
6. Apply firm pressure to engage the connectors.

   The Media Module connector has different length pins. The long pins will engage first to provide grounding. Medium length and short pins will provide power and signal.
7. Lock the Media Module into the chassis by tightening the spring-loaded captive screws on the front of the module.
8. Plug in the cables in the correct order.

End _______________________

WARNING: To prevent access to electrical hazards by unauthorized personnel and to ensure continued compliance to international radiated emissions requirements, all captive screws must be securely tightened such that they cannot be loosened without the use of a tool.

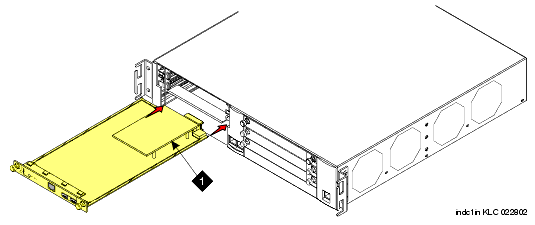

Figure 5. Inserting Media Modules
