How do I monitor my Internet Pre-Route environment?

The CIRS window

Use the CIRS window to monitor your Internet Pre-Route environment.

To access the Centralized Internet Routing Service window, click on the Windows Start button, and then click on the Avaya CIRS menu entry.

Illustration

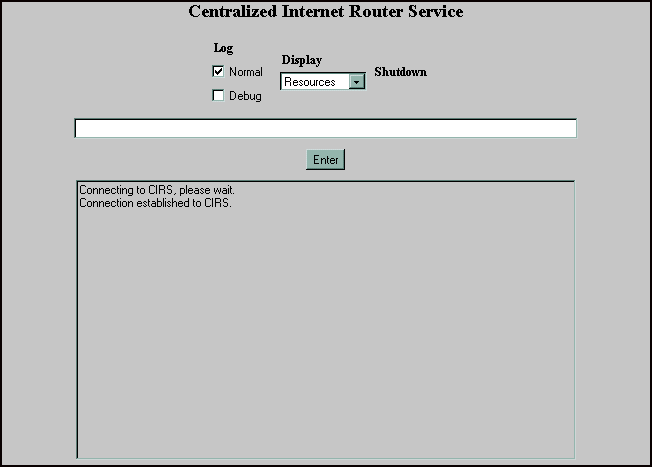

The following illustration provides an example of the CIRS Control Window:


CIRS window menus

The following table describes each CIRS menu item:

Menu Name Menu Item Description
Log Normal Changes the CIRS logging level to less detail.
Debug Changes the CIRS logging level to more detail.
Display Resources Displays available resources for each ICM.
Nextroute Informs you of the next ICM the CIRS will select for each type of session.
Agents Lists the agents logged in to each ICM.
Connections Lists all the connections to the CIRS.
Parameters Displays all CIRS parameters.
Version Displays software versions.
Commands Displays available commands.
Shutdown Name of ICM Displays the ICM name for each ICM connected to the CIRS. To prevent the CIRS from routing sessions to a specific ICM, select the ICM name from the list. For an alternate method for shutting down ICMs connected to the CIRS see Remotely shut down ICMs connected to the CIRS.
Help Version Displays the version information for the CIRS.
Commands Displays the list of valid CIRS commands.

Remotely shut down ICMs connected to the CIRS

To remotely shut down ICMs that are connected to the CIRS, do the following:

  1. Telnet to CIRS port 8108.

  2. To shut down an ICM, type the following at the prompt: set icmstate "ICM's domain name" false

  3. To restart an ICM, type the following at the prompt: set icmstate "ICM's domain name" true
