Add IP Solutions

Check your shipment

Return to Task List

When your DEFINITY IP Interface Assembly order arrives at your site, check the contents (see Required Hardware).

  1. Inspect the shipping carton for damage before opening it. If the box is damaged, do not open it. Inform the shipping company, and ask for instructions on filing a claim.

  2. If the box is undamaged, check the contents against the packing slip. Check the condition of each component, and note any damage or shortages on the packing slip. See Required Hardware for what the carton should contain for each IP Interface ordered.

  3. Read and follow any directions inserted into the package by the factory.

The TN802B external cable assembly is a bundle of cables with an amphenol connector at the end of the bundle and various PC-type connectors (VGA, Universal Serial Bus [USB], mouse, keyboard, Ethernet, modem, and COM2) at the ends of the individual cables. See TN802B IP Interface External Cable Assembly. Look for the label where the bundle enters the amphenol connector.

Required Hardware

Description
Quantity

TN799x C-LAN circuit pack.

11

TN802B IP Interface Assembly

1 or more

H600-512.G1 external cable assembly

1 or more

259A connector

1

CAT5 or better cable

1

U.S. Robotics Sportster external modem, Model USR 33.6 EXT (U.S. customers only). Non-U.S. customers must provide a modem comparable to this model .

1

20-ft DB-25 serial cable from modem to TN802B external cable assembly (U.S. customers only). Non-U.S. customers must provide a serial cable.

1

1
One TN799x supports more than one TN802B.

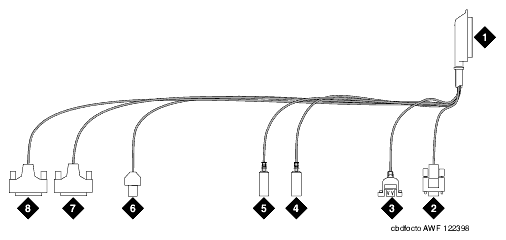

TN802B IP Interface External Cable Assembly

Figure Notes:
      1. Amphenol connector to connector corresponding to TN802B slot

      2. To VGA monitor

      3. To USB (not used)

      4. To keyboard

      5. To mouse

      6. To ethernet

      7. 25-pin male connector to modem

      8. 25-pin male connector to COM2 (not used)

Return to Task List
