DEFINITY Made Easy Tools
Issue 3, December 2001



Add IP Solutions

Assign Default Gateway

Return to Task List


Note: Not all networks require these steps. Check with the local network administrator to determine which are required.

  1. If you use gateways, type the IP address of the default gateway for the IP Interface server in the Default Gateway: field.

  2. On the TCP/IP Properties Window - DNS, click on the DNS tab and verify that the domain DNS server is correct.

  3. Type domain name in the Domain field.

  4. If using DNS, click Add under the DNS Service Search Order field and type its IP address.

  5. On the TCP/IP Properties Window - WINS Address, click on the WINS Address tab.


Note: Make sure the [2] DEC shows in the Adapter field.

  1. If WINS server is available, type its IP address in the Primary WINS Server field.

  2. If DNS is available, select Enable DNS for Windows Resolution.

  3. If the network uses an imported LMHOSTS file, select Enable LMHOSTS Lookup and Import LMHOSTS and click OK.

  4. If the following dialog box opens, click Yes.

    5. At least one of the adapter cards has an empty primary WINS address. Do you want to continue?

  5. Click the Bindings tab to effect the changes.

    6. NetBIOS Interface, Server, and Workstation should now be enabled. If any are disabled (a red circle with a line through it), review the previous network-configuration steps for omissions or errors.

  6. Click Close.


Danger! When connected remotely via pcANYWHERE, use only the pcANYWHERE Restart Host Computer button on the toolbar to restart Windows NT.

  1. Restart the computer.

    2. If administered remotely through pcANYWHERE, click on the pcANYWHERE Restart Host Computer button on the toolbar to restart the computer.

    or if administered locally on a monitor, keyboard, and mouse:

    Click Yes in the dialog box to restart the computer.

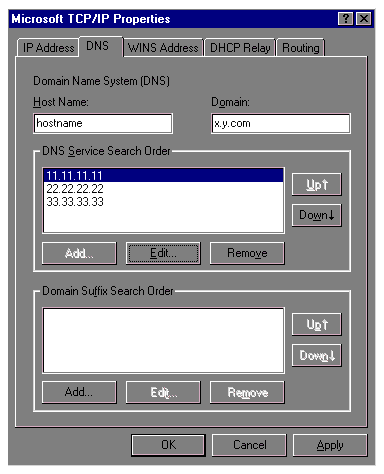

TCP/IP Properties Window - DNS

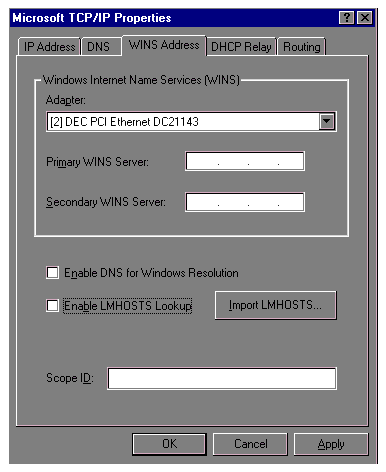

TCP/IP Properties Window - WINS Address

Return to Task List
