Install Additional Hardware

Install Cables (Add DCS)

Return to Task List

Install cable from the cabinet to a hub or Internet Protocol (IP) Switch as required. See Cable Connection for C-LAN. For a pinout of TN799x, see TN799x Pinout.

From the rear of the cabinet:

1. Connect the 259A connector to the backplane connector corresponding to the TN799x slot.


2. Connect one end of the CAT5 cable to the 259A connector. Connect the other end to the customer's network.

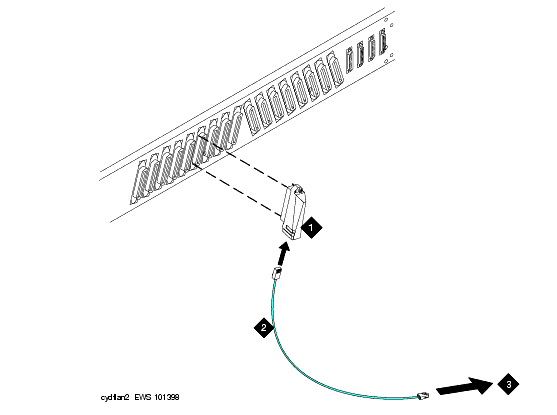

Cable Connection for C-LAN

Figure Notes:

1. 259A Connector


2. DW8A Cable


3. Hub or IP Switch
