Issue 3, December 2001



Bring the System Online

Install Removable Media (R10r in MCC)

Return to Task List

Insert the formatted removable media, label facing left, into the optical drive (see TN2211 Optical Drive).


Note: Make sure the formatted removable media is not write-protected (see Make sure the disk is not write protected) before placing it into the optical drive.

TN2211 Optical Drive

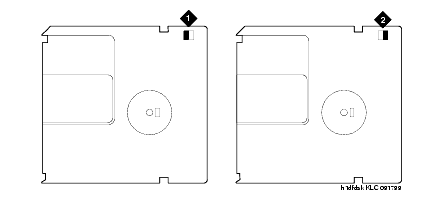

Make sure the disk is not write protected

Figure Notes:

      1. Not write protected

      2. Write protected

Return to Task List
