Duplicated DS1 Converter Complex Administration for E1 TN1654 Circuit Packs
Return to Task List
Fiber Link Administration form for B-PNC DS1 Converter (DS1CONV) Attributes allows you to admininster the DS1 converter.
The following unique fields display when administering a E1 TN1654 DS1 Converter.
-
Bit Rate
-- Displays when the DS1 Converter circuit pack is TN1654. Enter either
1.544 for domestic T1 operation or
2.048 for international E1 operation.
-
Idle Code MSB(1) ... LSB(8)
-- Displays when the DS1 Converter circuit pack is TN1654. Enter 8 digits, each digit must be
0 or
1. The second digit must be
1. Default is
11101000. You can administer this field on a per circuit pack basis.
-
CRC
-- Displays when the DS1 Converter circuit pack is TN1654 and the Bit Rate is 2.048 Mbps. Enter
yes to receive a "yellow 2" alarm for E1 operation. Default is
no. You can administer this field on a per circuit pack basis.
-
Line Termination
-- A display-only field for DS1 Converter circuit packs that are TN1654 and have a Bit Rate of 2.048 Mbps. It identifies facility connections as CEPT 75 ohm coaxial or 120 ohm CEPT twisted pair.

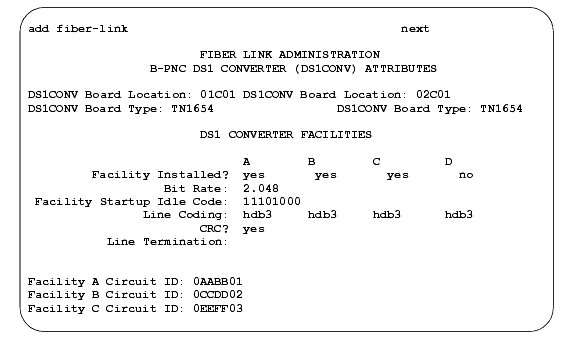

Fiber Link Administration form for B-PNC DS1 Converter (DS1CONV) Attributes
