DS1 Converter Complex Administration for E1 TN1654 Circuit Packs
Return to Task List
Fiber Link Administration form for E1 TN1654 Circuit Pack (DS1 Converter Complex Administration) (page 2 of 3) allows you to admininster the DS1 converter.
The following unique fields display when administering a E1 TN1654 DS1 Converter.
-
Bit Rate
-- Displays when the DS1 Converter circuit pack is TN1654. Enter either
1.544 for domestic T1 operation or
2.048 for international E1 operation.
-
Idle Code MSB(1) ... LSB(8)
-- Displays when the DS1 Converter circuit pack is TN1654. Enter 8 digits, each digit must be
0 or
1. The second digit must be
1. Default is
11101000. You can administer this field on a per circuit pack basis.
-
CRC
-- Displays when the DS1 Converter circuit pack is TN1654 and the Bit Rate is 2.048 Mbps. Enter
yes to receive a "yellow 2" alarm for E1 operation. Default is
no. You can administer this field on a per circuit pack basis.
-
Line Termination
-- A display-only field for DS1 Converter circuit packs that are TN1654 and have a Bit Rate of 2.048 Mbps. It identifies facility connections as CEPT 75 ohm coaxial or 120 ohm CEPT twisted pair.

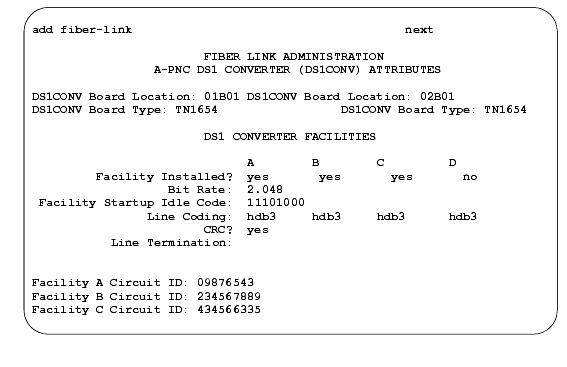

Fiber Link Administration form for E1 TN1654 Circuit Pack (DS1 Converter Complex Administration) (page 2 of 3)
