Issue 3, December 2001



Install and Connect Multi-Carrier Cabinets

Connect Standard-Reliability CSS-Connected System with 1 Switch Node

Return to Task List

Standard Reliability CSS-Connected Release 10r with 1 Switch Node shows typical fiber optic cabling between cabinets. The cable between the EI and SNI on the PPN is a pre-installed metallic cable (H600-278).

  1. If no running list is available, use the outer slots first in alternating order. Connect the first 2 SNI slots to 3 and 20 (the leftmost and rightmost of the unused slots). Next, use 4 and 19, and so forth.

  2. Add links to the EPNs in alternating order (20, 3, 19, 4, 18, 5, and so forth).

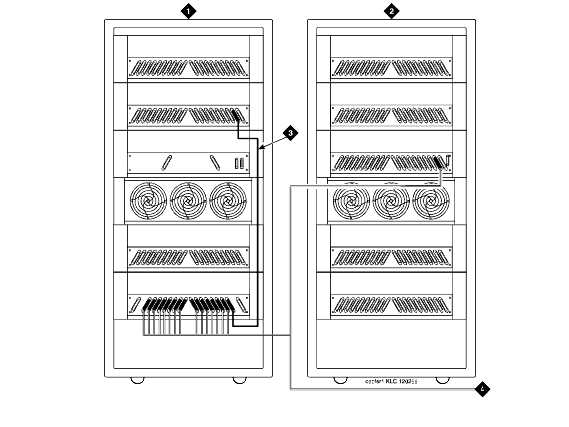

Standard Reliability CSS-Connected Release 10r with 1 Switch Node

Figure Notes:

      1. Cabinet 1 (PPN with 1 Switch Node)

      2. Cabinet 2 through 16 (EPN)

      3. H600-278 Metallic Cable

      4. To other EPNs
