Install and Connect Multi-Carrier Cabinets
Connect High-Reliability CSS-Connected System with 1 Switch Node

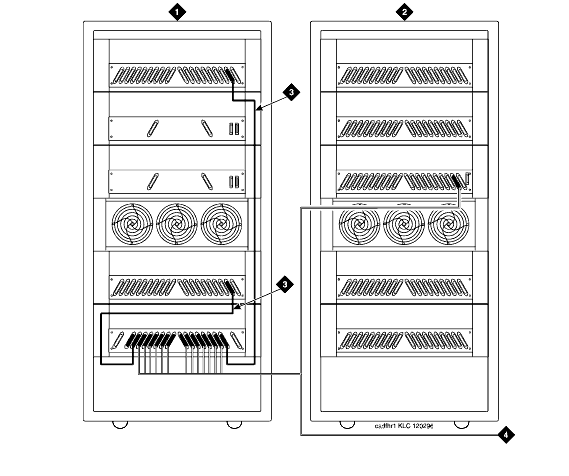

High-Reliability CSS-Connected with 1 Switch Node shows typical fiber optic cabling between cabinets. The cable between the EI and SNI on the PPN cabinet is a pre-installed metallic cable (H600-278).
Connect the cables between the PPN cabinet and each EPN cabinet in an alternating port slot order: 3, 19; 4, 18; 5, 17; and so forth. Cabinet 1 is a Release 10r PPN with 1 Switch Node.
High-Reliability CSS-Connected with 1 Switch Node
|
|
|
|
|
|
|
|
|
|
