Install and Wire Telephones

---

Analog Tie Trunk Example

Return to Task List

This example shows how to connect analog tie trunk wiring from one DEFINITY System to another DEFINITY System.

1. Set the option switches on the port circuit pack (such as TN760).



Go to Option Switch Settings for detailed information.

2. Install cross-connect jumpers to connect the pins from the tie trunk circuit pack to the appropriate leads on the external tie trunk.



Analog Tie Trunk Wiring shows a DEFINITY System tie trunk connected to a DEFINITY System tie trunk. Names of the tie trunk leads must be determined from the manufacturer or supplier of the external trunk circuit.

3. Administer on the Trunk Group Screen of the management terminal. Refer to the DEFINITY Enterprise Communications Server Administrator's Guide for more details.

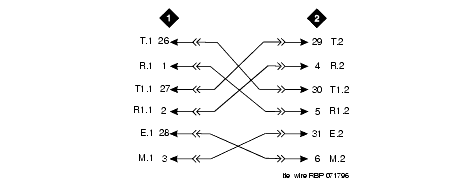

Analog Tie Trunk Wiring

Figure Notes:

1. External Trunk or Adapter


2. Tie Trunk Circuit Pack (Position 1C05)

Return to Task List

---
