Install Fiber Optic Cable Pass-Thru Kit (Single-Carrier Cabinets)

Prepare the cabinet

Return to Task List

  1. Verify the equipment received.

    2. See Fiber pass-thru kit equipment. Actual equipment may vary in appearance and may ship in separate packages.

  2. Remove the 2 perforated metal panels from the rear of the cabinet. See Remove the rear panels.

  3. Remove the front door.


Note: Administration may be required before removing the circuit pack in the following step.

  1. Determine which slot (1 or 2) will contain the new fiber optic circuit pack. Remove the circuit pack or the blanking plate from this slot.


Note: For duplicated systems, you must install the duplication interface circuit pack in slot 1.


Note: If a circuit pack is removed from the required slot, it must be installed into a different slot in the cabinet. All translations associated with this circuit pack must also be moved.

  1. Remove the circuit pack or the blanking plate from the slot next to the slot determined in step 4. Two consecutive open slots are required to install the fiber optic adapter.


Note: If a circuit pack was removed in step 5, it will be replaced into the same slot in the next procedure.

  1. From the rear, remove the I/O cable connector plate associated with the slot that will contain the new fiber optic circuit pack.

  2. Using a supplied cable tie, secure the removed I/O connector plate to the back of the cabinet or to nearby cabling. This will keep it from moving loosely inside the cabinet.

  3. From the rear, remove the I/O cable connector associated with the slot that will contain the new fiber optic circuit pack. See Remove the I/O cable connector.

  4. Using a supplied cable tie, secure the removed I/O connector to nearby cabling. See Secure the I/O cable connector.

Return to Task List

Fiber pass-thru kit equipment

Figure Notes:
      1. Pass-thru Tool

      2. SC-SC Fiber Optic Adapter

      3. ST-SC Fiber Optic Adapter

      4. Fiber Optic Cable (Multimode or Single-mode)

      5. Fiber Optic Cable Disconnect Label

      6. I/O Connector Adapter Bracket

      7. Cable Tie

      8. Cable Tie Mount

Fiber Pass-Thru Kit Equipment

List of Fiber Pass-Thru Kit Equipment
Quantity
Description

1

Pass-thru Tool

1

Beige SC-SC Fiber Optic Adapter (multimode)

1

Beige ST-SC Fiber Optic Adapter (multimode)

1

Ten-foot (3 m) Fiber Optic Cable (multimode)

1

Beige SC-SC Fiber Optic Adapter (single-mode)

1

Beige ST-SC Fiber Optic Adapter (single-mode)

1

10-ft (3 m) Fiber Optic Cable (single-mode)

1

I/O Connector Adapter Bracket

1

Fiber Optic Cable Disconnect Label

10

Cable Ties

6

Cable Tie Mounts

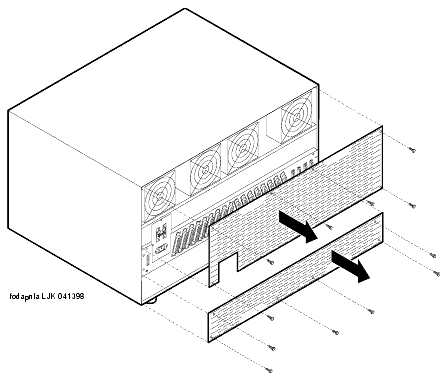

Remove the rear panels

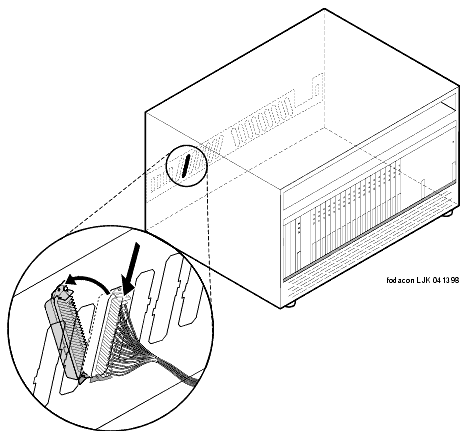

Remove the I/O cable connector

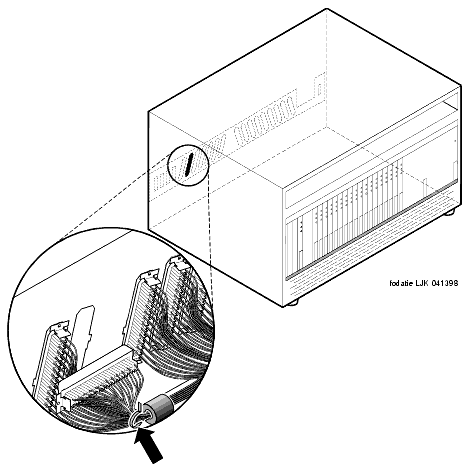

Secure the I/O cable connector
