Connect control cabinet power and ground [G3V4vs, R5vs, R6vs to R10si]

Return to Task List

  1. Connect the 6 AWG (#40) (16-mm 2) wire from the single-point ground block on the control cabinet to the approved ground (see Typical AC power and ground layout).

    2. This wire was previously used on the DEFINITY vs cabinet.

  2. Connect the 10 AWG (#25) (6-mm 2) wire between the cabinet single-point ground block and the CBC.

    3. This wire was previously used on the DEFINITY vs cabinet.

  3. Connect the supplied cabinet AC power cord to the AC receptacle on the rear of the control cabinet. Plug the opposite end of the cord into the dedicated electrical outlet.

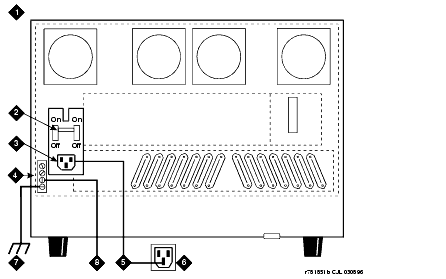

Typical AC power and ground layout

Figure Notes:
      1. Control cabinet

      2. Circuit-breaker receptacle

      3. Single-point ground block

      4. 8-ft power cord (2.5 m)

      5. NEMA 5-15 or 5-20 receptacle or equivalent

      6. 6 AWG (16-mm 2) CABINET GROUND wire to approved ground

      7. 10 AWG (6-mm 2) wire to CBC

Return to Task List
