Install Additional Hardware
Test the External Connection to the LAN
To test the external IP connections, ping the C-LAN server and ping a known computer connected to your network. If everything is configured correctly, the Result column on the Ping Results screen reads pass. If it reads abort, verify the IP-address information and check the connectivity, including the cabling.
- Type ping ip-address nnn.nnn.nnn.nnn board UUCSS and press Enter . The variable nnn.nnn.nnn.nnn is the IP address of the TN799B C-LAN circuit pack and UUCSS is the cabinet, carrier, and slot of the TN799B C-LAN circuit pack.
- Type ping ip-address nnn.nnn.nnn.nnn board UUCSS and press Enter . The variable nnn.nnn.nnn.nnn is the IP address of the customer's gateway and UUCSS is the cabinet, carrier, and slot of the TN799B C-LAN circuit pack.
- Type ping ip-address nnn.nnn.nnn.nnn board UUCSS and press Enter . The variable nnn.nnn.nnn.nnn is the IP address of another computer beyond the gateway and UUCSS is the cabinet, carrier, and slot of the TN799B C-LAN circuit pack.
The TN799B C-LAN circuit pack is now installed in the DEFINITY carrier andconnected to the IP network.

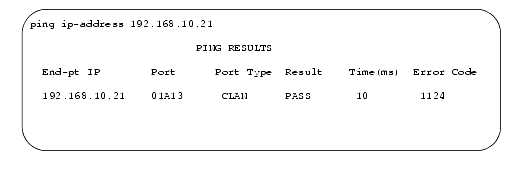

Ping Results screen
|
|
|
|
|
|
|
|
|
|
